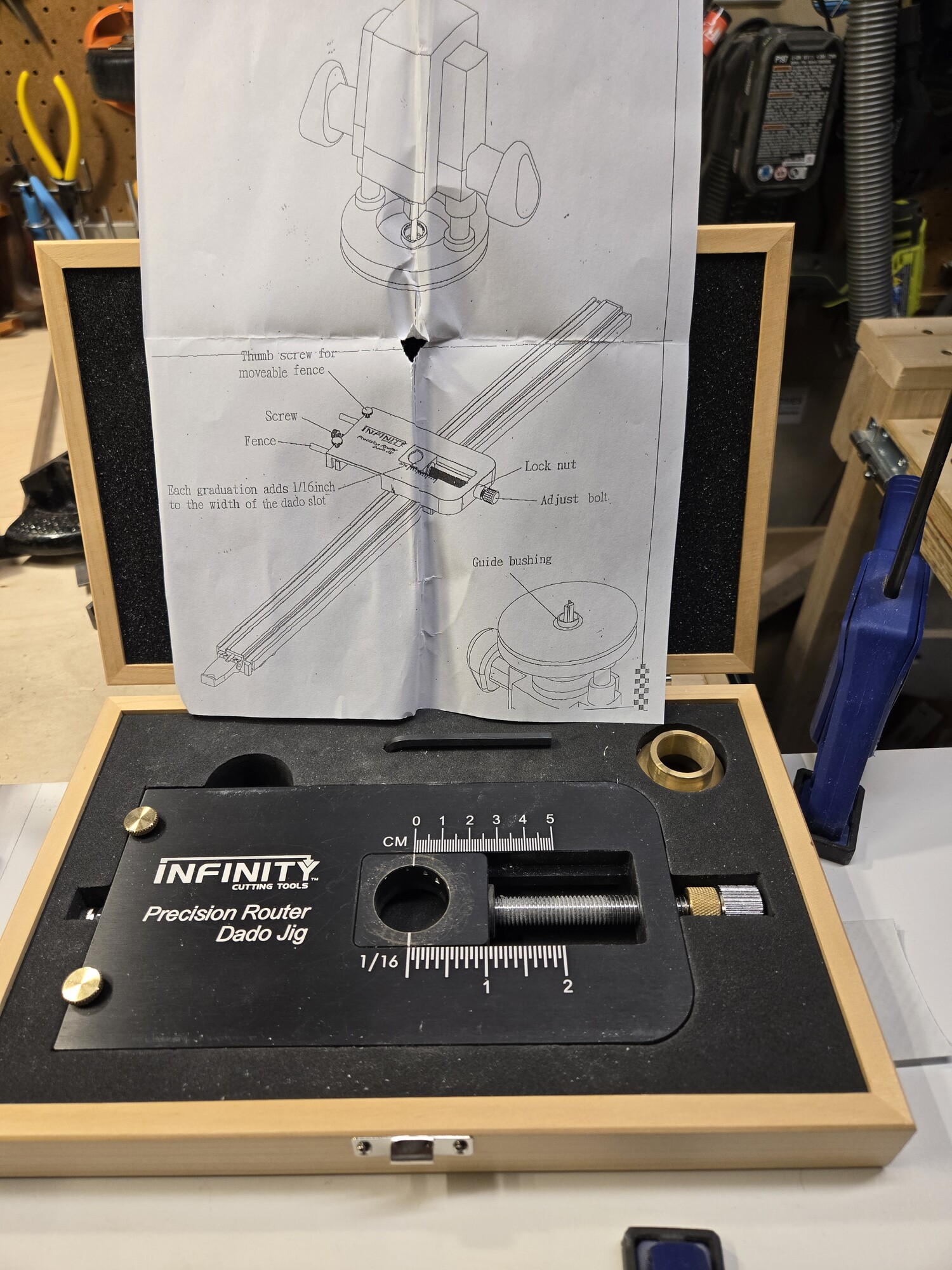

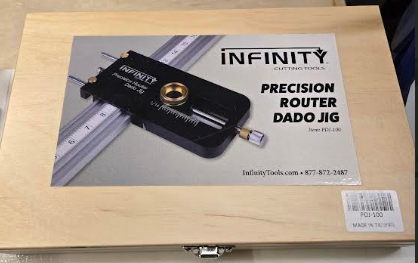

Precision Router Dado Jig, Infinity Tools

Make Perfect Fitting Dado Joints Quickly & Easily With Our New Jig!

Use your hand-held router and this exclusive new jig to make precise dado joints quickly and with confidence. Built from a solid piece of aluminum, this router jig allows you to make precise dados, rabbets and mortises up to 2\" wide in exact 1/16\" increments. It will work with any of our 2\" wide PRO-GRIP straight edge clamps and comes with one ¾\" brass template guide and locking ring. Does not include clamp-n-guide.

Features Include:

Makes accurate cuts up to 2\" wide in 1/16\" increments
Dado length limited only by the length of your straight edge clamp
Solid aluminum construction for years of service
Will work with any handheld router that accepts Porter Cable style bushings (1-3/16\" base opening)
Use any straight or spiral router bit up to 3/4\" cutting diameter
Fits over any 2\" wide PRO-GRIP straight edge clamp
Comes with a 3/4\" brass template guide (accepts up to a 3/4\" diameter straight or spiral bit)
Steel rollers insure smooth and accurate rolling action
